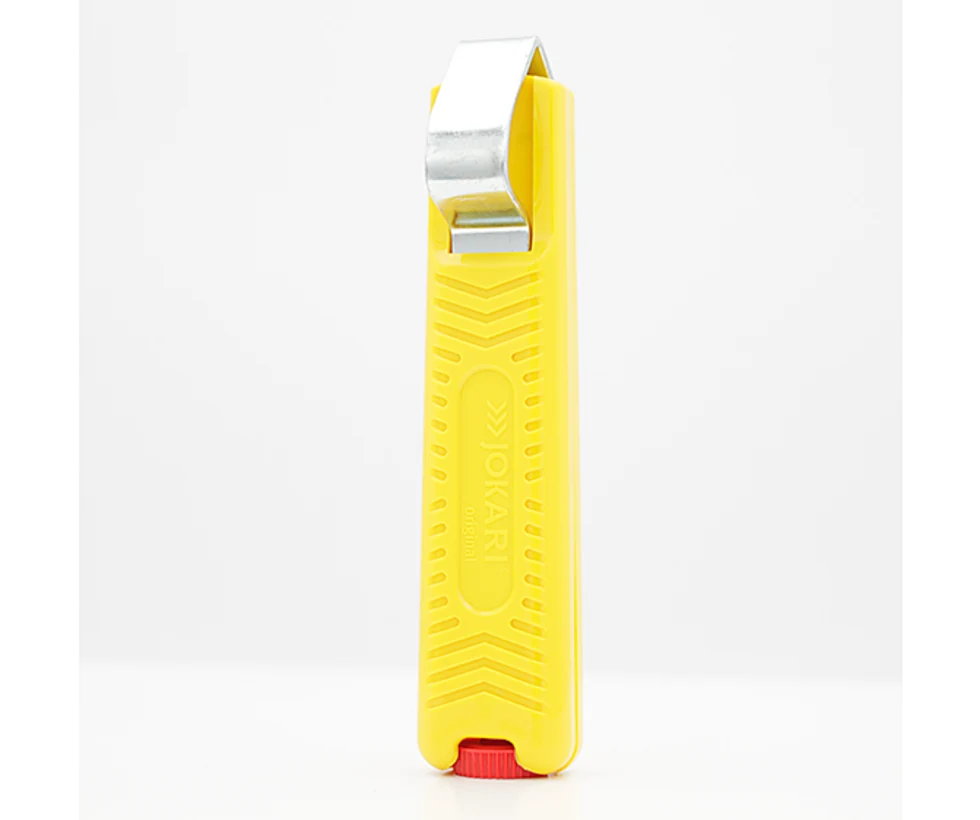

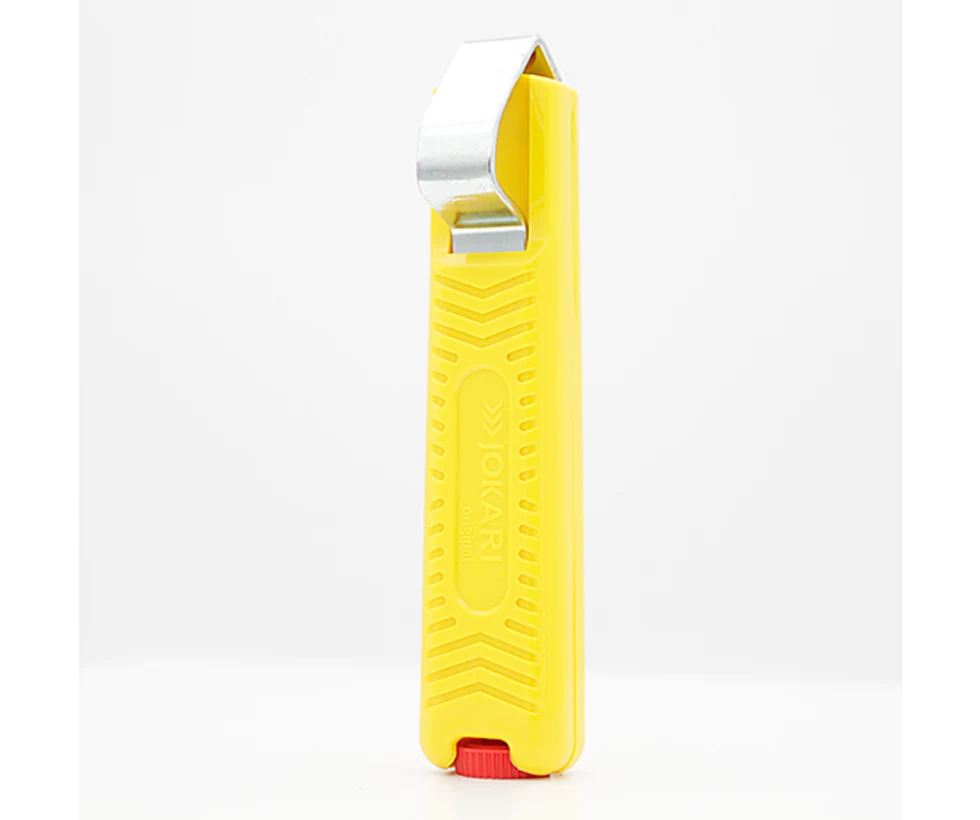

Cable Knife No. 27 Standard
Roundcables 8 - 28 mm Ø 5/16“ - 1.1/8“ Ø
- Area of application: For all common round wires and cables from 8 - 28 mm ø
- Suitable for: e.g. NYM-J, NYY-J, NHXMH-J, e.g. 3x1.5, 5x2.5 or 5x16
- Blades: TiN-coated, reduces effort, increases precision and service life
- Adjustment: Cutting depth adjustable with adjustment screw at the end of the handle
- Automatic adjustment: automatic adjustment to round and longitudinal cut
- Durability: Replacement blade in the handle for changing blades
Product description
The cable knife No. 27 Standard is suitable for stripping all common round cables and is often used for NYM-J, NYY-J, NHXMH-J, e.g. 3x1.5 / 5x2.5 - 5x16 mm² The blades are titanium nitride coated. This ensures a faster cutting, less wear and a longer service life of the cable knife. The cutting depth can be adjusted using an adjustment screw at the end of the handle, and the adjustment to the round and longitudinal cut is automatic. Inside there is a titanium nitride coated replacement blade, the housing is made of high-quality, wear-resistant polyamide.
Compatible cables
Cable types listed as compatible by JOKARI. Click one to see tools for that cable.
OEM documentation
- Datasheet Datasheet 741 KB Download ↓
- Manual User manual 1575 KB Download ↓
