QUADRO Plus

Product description

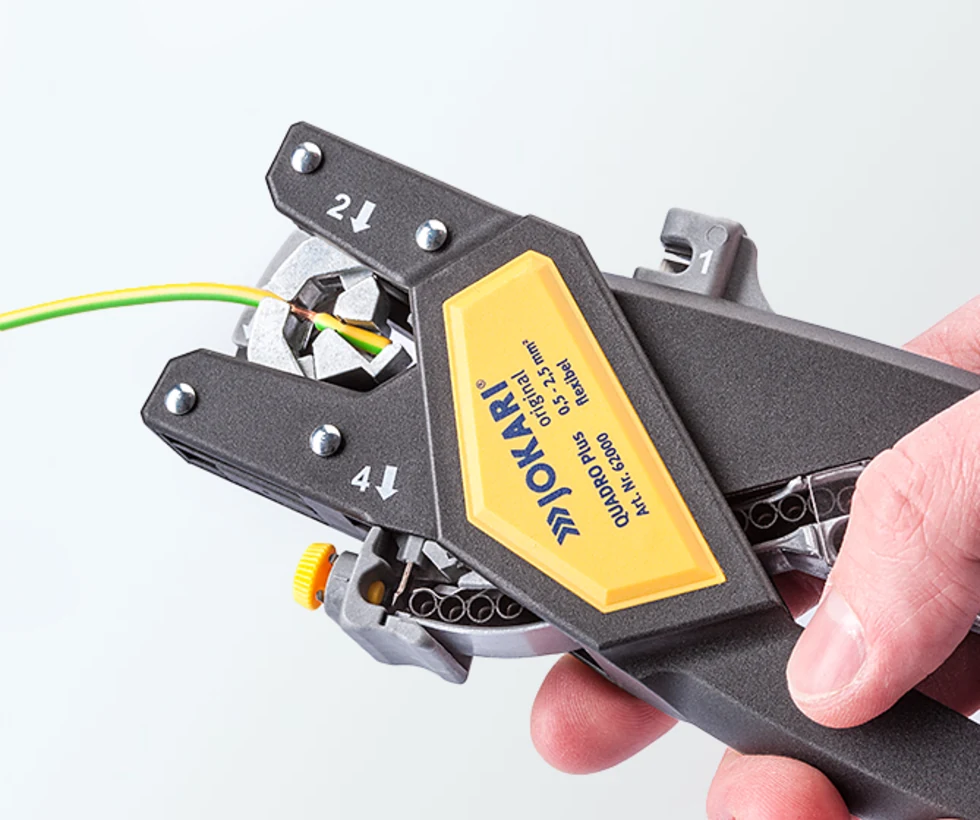

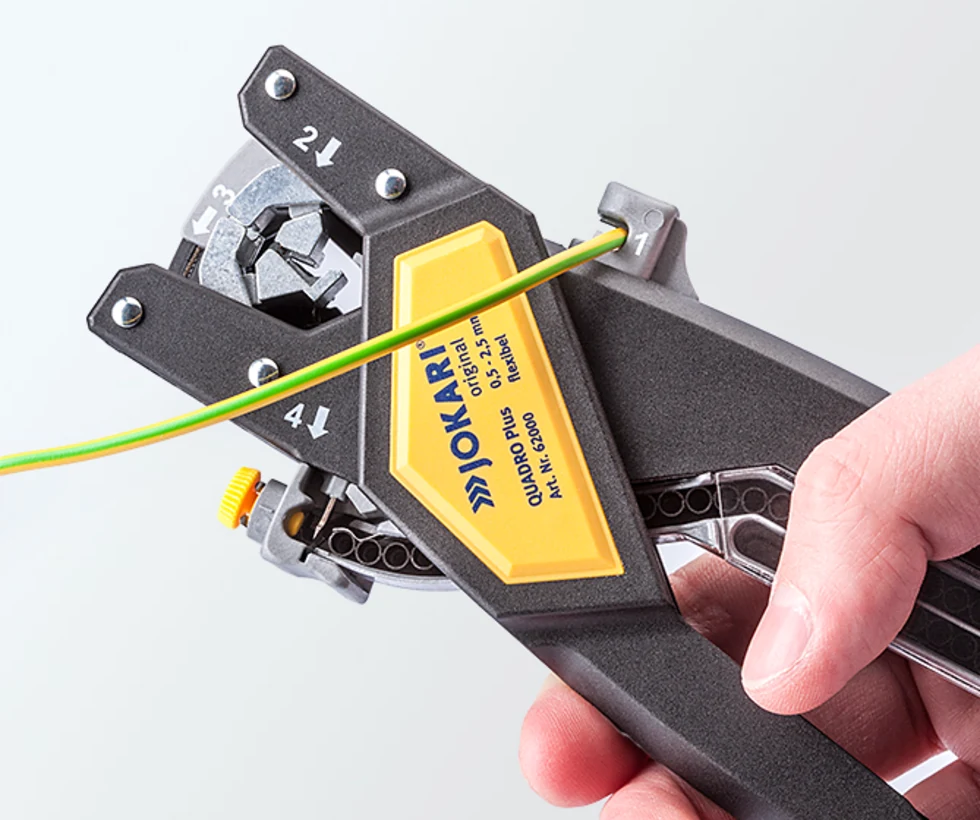

Multifunctionaltool for PVC-insulated flexible conductors and strands with a working range of 0.5 to 2.5 mm² | AWG 20 - 14 - the perfect synthesis of ergonomics and functionality. Unique integration of four functions in one stripping and crimping pliers: cutting - stripping - twisting - crimping. Perfect for applications in the electrical engineering industry, in electrical engineering service or in switch cabinet construction / switchgear construction / control system construction. Adjustment to the conductor cross-section is not necessary. Precise length stop ensures even stripping. The ratchet function ensures even and high-quality crimping at all times. The integrated forced lock is triggered when the crimping stamp has reached the end position. Reloading the strip material is done quickly by simply changing the magazine. A high gear ratio enables easy crimping of the wire end ferrules. The twisting system prevents the strands from splitting by strengthening the cable lay and ensures that the conductor is safely inserted into the wire end sleeve without sweating from the hand or the risk of cross-section tapering. The QUADRO Plus crimps wire end sleeves in strips from 0.5 to 2.5 mm² (AWG 20 - 14) in accordance with VDE 0609 Part 1. The integrated side cutter is suitable for wires up to a maximum of 2.5 mm². The tool set is supplied in a high-quality L-BOXX Mini system tool box from Sortimo - ideal for safe storage and perfect integration into existing organization systems.

Compatible cables

Cable types listed as compatible by JOKARI. Click one to see tools for that cable.

OEM documentation

• Datasheet Datasheet 1818 KB Download ↓
• Manual User manual 2247 KB Download ↓
